Autoclave Engineer / High Pressure Fittings
High Pressure Fitting

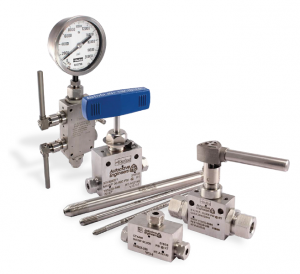

Parker Autoclave Engineers High Pressure Fittings are designed for demanding fluid and gas applications requiring secure, reliable, and high-strength connections. The fittings use a coned-and-threaded connection system to provide strong mechanical performance, dependable sealing, and repeated make-up capability in high-pressure tubing systems.
Parker Autoclave Engineers is widely recognized for high-pressure systems used in applications exceeding 150,000 psi. However, the actual working pressure of each fitting depends on the selected series, tubing size, material, temperature, connection configuration, and application conditions.
Key Features
- Coned-and-threaded connections for high mechanical strength and repeated assembly.
- Available for medium and high pressure tubing systems.
- Manufactured from cold-worked 316 stainless steel for strength and corrosion resistance.
- Available in a range of fitting configurations for different system layouts.
- Optional anti-vibration connection assemblies for installations exposed to vibration or shock.
- Special materials available upon request for corrosive fluids, high-temperature service, and demanding industrial applications.
- Designed for use with Parker Autoclave Engineers specified tubing to maintain system integrity.
Available Fitting Configurations
Parker Autoclave Engineers High Pressure Fittings are available in various configurations, including:
- Elbows
- Tees
- Crosses
- Straight Couplings
- Union Couplings
- Bulkhead Couplings
- Male/Female Adapters
- Adapter Couplings
- Glands, Collars, and Plugs
- Check Valves
- Line Filters
- Safety Heads
The available fitting configurations allow engineers to build complete high-pressure tubing systems based on layout, pressure, flow, and installation requirements.
High Pressure Fitting Specifications
| Specification | Details |
|---|---|
| Product Type | Parker Autoclave Engineers High Pressure Fittings |
| Connection Type | Coned-and-threaded connection |
| Standard Material | Cold-worked 316 stainless steel |
| Optional Materials | Super Duplex, 6Mo, Hastelloy, Inconel, Monel, Nickel, Titanium, and other materials upon request |
| Medium Pressure Rating | Up to 20,000 psi (1,380 bar), depending on tubing size and fitting series |
| Large Medium Pressure Rating | Up to 15,000 psi (1,034 bar) for selected 1-1/2” tubing configurations |
| High Pressure Rating | Up to 60,000 psi (4,140 bar) for selected 1/4”, 3/8”, and 9/16” tubing series |
| High Pressure 40K Rating | Up to 40,000 psi (2,760 bar) for selected 9/16” tubing series |
| High Pressure 43K Rating | Up to 43,000 psi (2,964 bar) for selected 1” tubing series |
| Available Fitting Types | Elbow, tee, cross, straight coupling, union coupling, bulkhead coupling, adapters, and accessories |
| Anti-Vibration Option | Anti-vibration collet gland assemblies available |
| Compatible Tubing | Parker Autoclave Engineers specified medium and high pressure tubing |
| Application Considerations | Pressure, temperature, fluid media, tubing size, material, and connection configuration must be considered during selection |
The fitting range includes medium-pressure connections from 1/4” to 1-1/2” up to 20,000 psi, while selected high-pressure series are rated up to 40,000 psi, 43,000 psi, or 60,000 psi depending on tube size and connection type.
Anti-Vibration Connection Option
For tubing systems installed near pumps, compressors, or other equipment that may create vibration or shock, Parker Autoclave Engineers offers Anti-Vibration Collet Gland Assemblies.
These assemblies provide additional tubing support while maintaining the pressure-handling capability of the fitting connection. They are interchangeable with standard Parker Autoclave Engineers high-pressure connections and are suitable for applications where unsupported tubing lines may be exposed to vibration.
Adapters and Couplings
Male/female adapters are available to connect different fitting sizes or connection types. Adapter couplings can also be used to join different Parker Autoclave Engineers tubing connections within the same high-pressure system.
For adapters with two different connection ratings, the final pressure rating follows the lower-rated connection.
Compatible High Pressure Tubing
For safe and reliable performance, Parker Autoclave Engineers fittings should be installed with Parker Autoclave Engineers specified tubing. The manufacturer cautions against mixing fittings, tools, or tubing with products from other manufacturers because doing so may affect safety, product performance, and warranty coverage.
Request a Quote
To ensure proper fitting selection, please provide the following information:
- Working pressure and design pressure
- Operating temperature
- Fluid or gas media
- Tubing outside diameter and wall thickness
- Required fitting configuration
- Connection type
- Material requirement
- Quantity required
- Special requirements, such as anti-vibration, corrosive service, or sour gas service
Contact Instrumindo to discuss your Parker Autoclave Engineers High Pressure Fitting requirements and receive the appropriate product recommendation for your application.
Important note: Before publishing, it is better to verify the existing claims for 5/16” tubing size, -423°F to 1,200°F temperature range, and the universal 150,000 psi statement against the exact Parker product series or full datasheet. The uploaded condensed catalog specifically details fitting ranges up to 60,000 psi for selected sizes and series.
